Applications
- Porcelain, ceramic, glazed, and vitrified tiles.
- Contractor use where clean edge and control are required.
1 / 2
Specifications
Specification Table
- Diameter (mm)
- 100
- Segment Height (mm)
- 10
- Thickness (mm)
- 1.2
Diameter (mm) | Segment Height (mm) | Thickness (mm) | Bore (mm) |
|---|---|---|---|
| 100 | 10 | 1.2 | 20 |
| 105 | 10 | 1.2 | 20 |
| 115 | 10 | 1.2 | 22.33 |
| 125 | 10 | 1.3 | 22.33 |
| 150 | 10 | 1.6 | 22.33 |
| 180 | 10 | 1.6 | 22.33 |
| 230 | 10 | 2 | 22.33 |
Product Overview

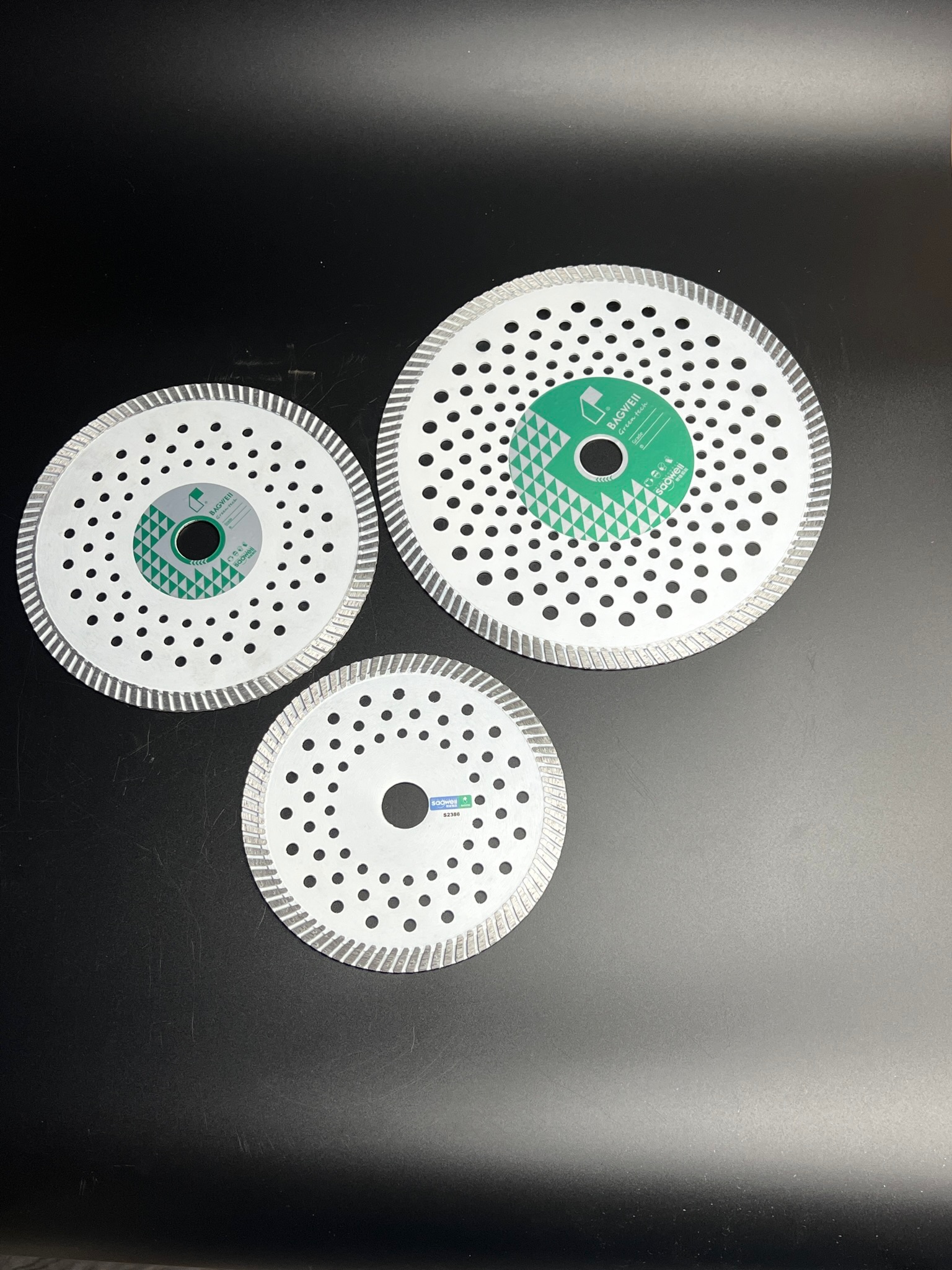

CeraBlade™
Built for clean tile cuts with stable edge quality in daily contractor use.
Request a Quote
Select Size / Configuration
Choose the required option
Select one option to request a quote for this product.
Selected No size selected yet.
Request a Quote
CeraBlade™
Select a size and send your inquiry with precise commercial details.
Selected size Choose a size above
Selected size Choose a size above
Minimum order 300 pcs per size
Lead time 7-15 days
Availability Standard diameters in rolling production
Select Size / Configuration
Choose the required option
Select one option to request a quote for this product.
Selected No size selected yet.
Why CeraBlade™
Key reasons this product fits the job
Performance
- Fast and stable cutting with reduced edge chipping.
- Balanced body design for smooth feed and predictable handling.
Technical / Application Info
Not Good For
Avoid this tool on the following materials:
Wet / Dry Use
Wet cutting recommended for hard porcelain; dry cutting for standard ceramic
Machine Compatibility
Tile saws, angle grinders, handheld cutters
Operating Guidance
- Use wet cutting for hard porcelain to reduce heat build-up
- Maintain smooth feed — avoid forcing the blade
Supply & Service
Minimum Order
MOQ applies per individual size — mixed sizes accepted in one order
Lead Time
Standard production: 7–15 days from order confirmation
Customisation
- Private label and custom packaging available
- OEM branding on request
Shipping Terms
EXW / FOB available
Response Time
Quote response within 24 hours on business days
Fit & Use
Fit
Confirm diameter, bore, and flange compatibility.
Use
Match wet or dry method to machine and material.
Quote
Send quantity, destination, and packaging needs.
Specifications
Specification Table
- Diameter (mm)
- 100
- Segment Height (mm)
- 10
- Thickness (mm)
- 1.2
Diameter (mm) | Segment Height (mm) | Thickness (mm) | Bore (mm) |
|---|---|---|---|
| 100 | 10 | 1.2 | 20 |
| 105 | 10 | 1.2 | 20 |
| 115 | 10 | 1.2 | 22.33 |
| 125 | 10 | 1.3 | 22.33 |
| 150 | 10 | 1.6 | 22.33 |
| 180 | 10 | 1.6 | 22.33 |
| 230 | 10 | 2 | 22.33 |
